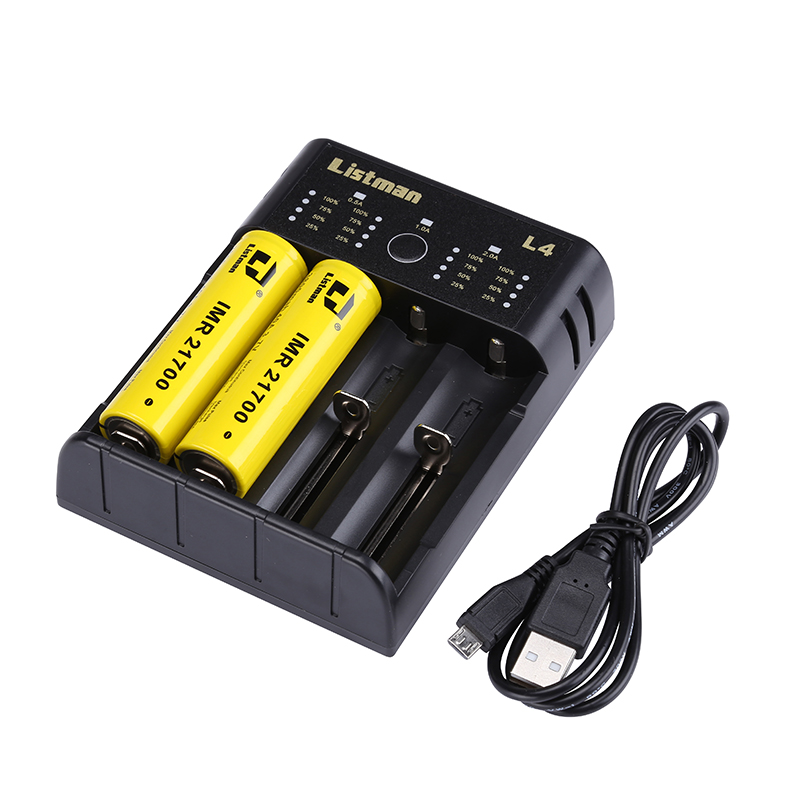

Listman L4 2A Charger

Description

New Listman L4 2A Fast Charger
Brand Name: LISTMAN
Socket Standard: USB
Model Number: L4
Use:charge 3.7V/3.6V rechargeable battery
Type:Electric
Place of Origin: Guangdong
China (Mainland)
Port:1*USB
Product name:Listman L4 charger
Output:4.2V 2*1A
Certificate: CE RoHS KC
Input:5V 2A
Material:Plastic
Compatible battery:3.7V 18650 26650 26500 20700 21700 26700 25500 18700 18500 18490 18350 17650 16650 16340(RCR123)14650 14500 NI-MH/Ni-Cd:AA. AAA. A .SC.C .F6
Color:Black

1. Charging mode By pressing the current switching function on the right side of the product
it can be cycled in 0.5A/1A/2A three current modes to meet the needs of charging 3.7V lithium battery and 12V Ni-MH cylindrical battery of different specifications. This charger is suitable for10440/14500/14650/16340/16650/17650/17670/18350 /18490/18500/18650/18700/22650/20700/21700/22700/25500/26650/26700 AAA
AA
A
C
SC
F6 models of batteries.
2. Circuit anti-reverse function
When the charger is in the charging or standby state
if the positive and negative terminals of each channel are short-circuited
cross-short
the battery itself is short-circuited
and the positive and negative terminals of the battery are reversed
the product protection function is activated
and the charger will not be damaged.
3. Low voltage activation
When the charger is in standby
the low voltage battery (battery voltage ?? 2.9V) is correctly connected to the charging channel
and the trickle charge function of the charger is activated to automatically activate the low voltage battery.
Due to factors such as the number of times of over-discharge of the low-voltage battery
capacity
degree of over-discharge
and duration of low-voltage
the activation time varies greatly. After the battery is activated
charge it according to the charging process.
4. Overcharge protection and automatic detection of charging function
Connect the battery to be charged. If the battery voltage is <4.18V the charger starts the charging function and charges the rechargeable battery. When the battery is full the charger activates the overcharge protection function and automatically stops charging. If the battery is not removed after a long period of time the charger will consume a certain amount of battery power. When the battery voltage is lower than 4.0V the charger restarts the charging function. Save Money Instructions: 1.Get discount coupon codes before completing the order. 2.Redeem your reward points during checkout. 3.Become one of our wholesale customers to get VIP price join our wholesale program now. Your satisfaction is our top priority. Feel free to contact us at any time any place.
